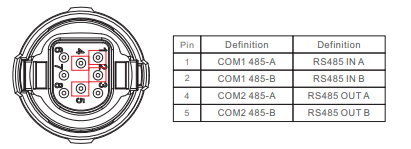

Pin layout for RS485 Inverter-EMS connection

You can steer an inverter using an Autarco or third-party EMS system in two main ways:

1. TCP/IP connection – steering commands are sent via a communication stick (S2.LAN-STICK-D or S2.WIFI-STICK-D2).

2. RS485 connection – using a UTP cable to connect the EMS directly to the inverter. In most cases, not all wires of the UTP cable are needed.

Below is a full list of Autarco inverters that support a wired RS485 connection between the EMS and the inverter. This can run in parallel with Autarco monitoring (MyAutarco data via a communication stick).

• A dedicated RS485 port on the inverter must be used for this connection type.

• For inverters without a dedicated RS485 port, see the alternative connection method here.

1 phase hybrid inverters

MH-MIII

3 phase hybrid inverter

LH-MII series

LQH series

XLH series

3 phase on-grid inverters

UX-MIII series
