Initial EMS Controller configuration

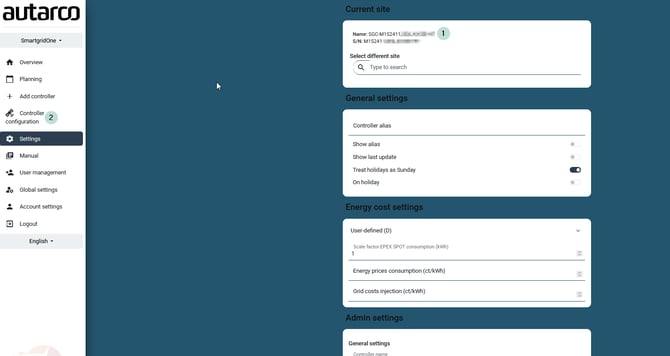

  1. Double-check that the correct controller is selected.
  2. Open the controller configuration to proceed with setup or adjustments.

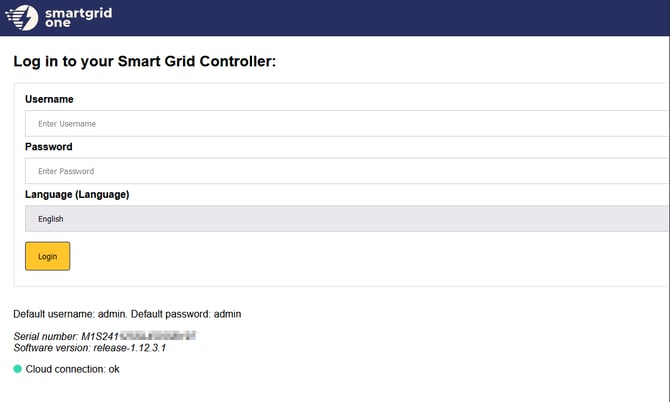

2025-06-25 16_52_54-Initial Logger Configuration - Product Team - Confluence — Mozilla Firefox

Initial Controller Setup

⚠️ Note: The initial setup is typically performed by the installer. Ensure you have the correct information before proceeding.

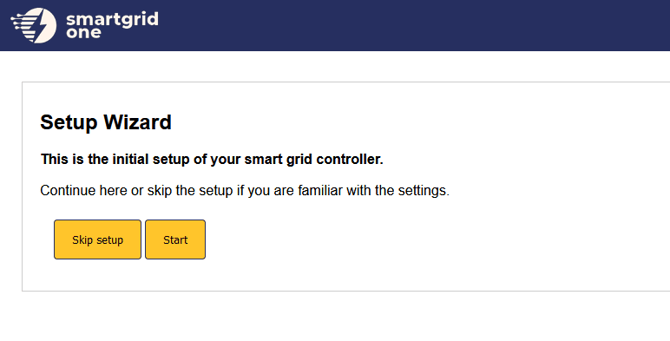

  1. Walk through the initial setup steps of the controller.

  2. During configuration, you will need to specify the following:

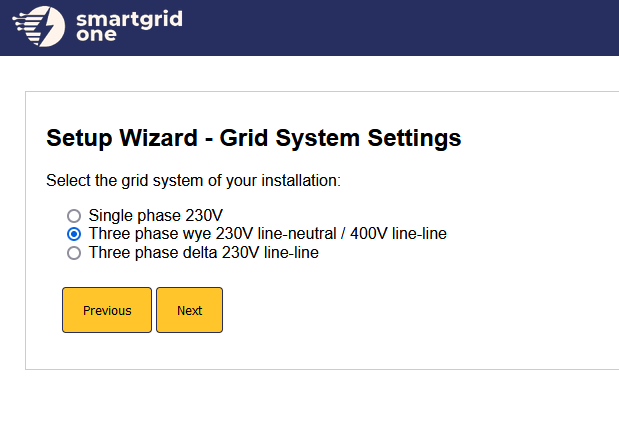

    • Grid connection type: Single-phase (1p) or Three-phase (3p)

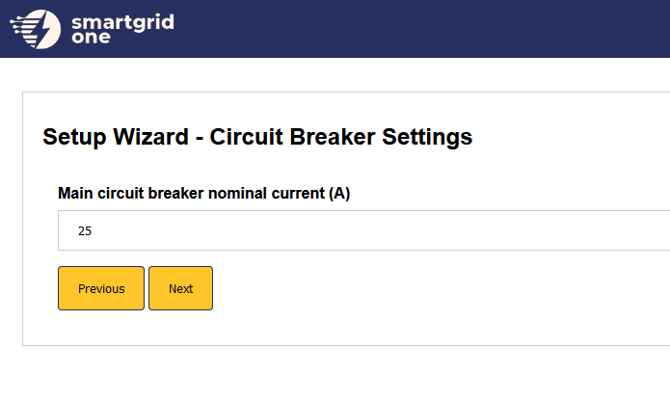

    • Allowed current (as specified for the installation)

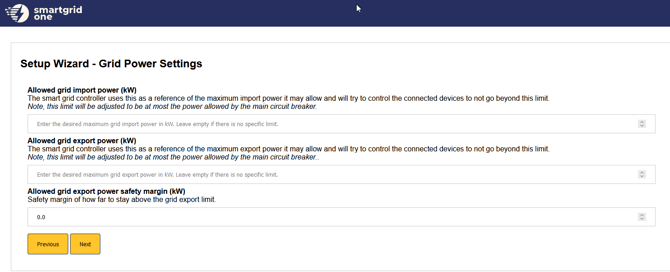

    • Import/export limits, if applicable
    • Address of the installation site

2025-06-25 16_54_14-Initial Logger Configuration - Product Team - Confluence — Mozilla Firefox

image-20250128-151122

image-20250128-151305

image-20250128-151655

image-20250128-151648

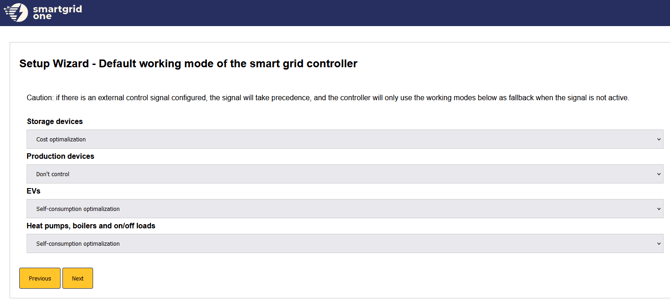

The following settings decide how the EMS is going to work. They can be changed later on but it is better to set them correctly from the start.

image-20250128-151816

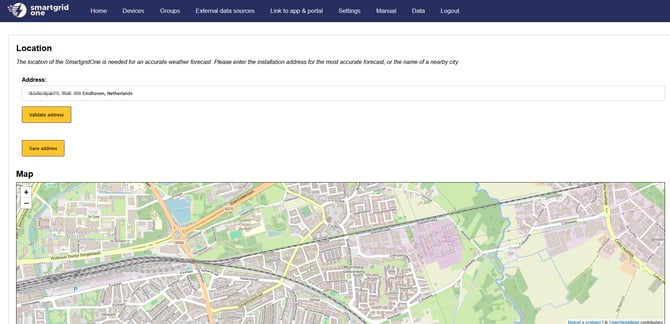

Last but not least it will ask to confirm the address. This is needed to check the EPEX spot prices for example of the negative energy prices but also for Smart Charging.

2025-06-25 16_56_54-Mozilla Firefox

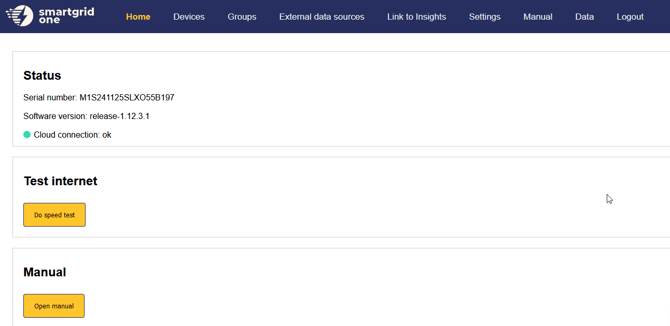

When everything is done you will be redirected to the overall overview of the EMS logger.

image-20250128-152216
